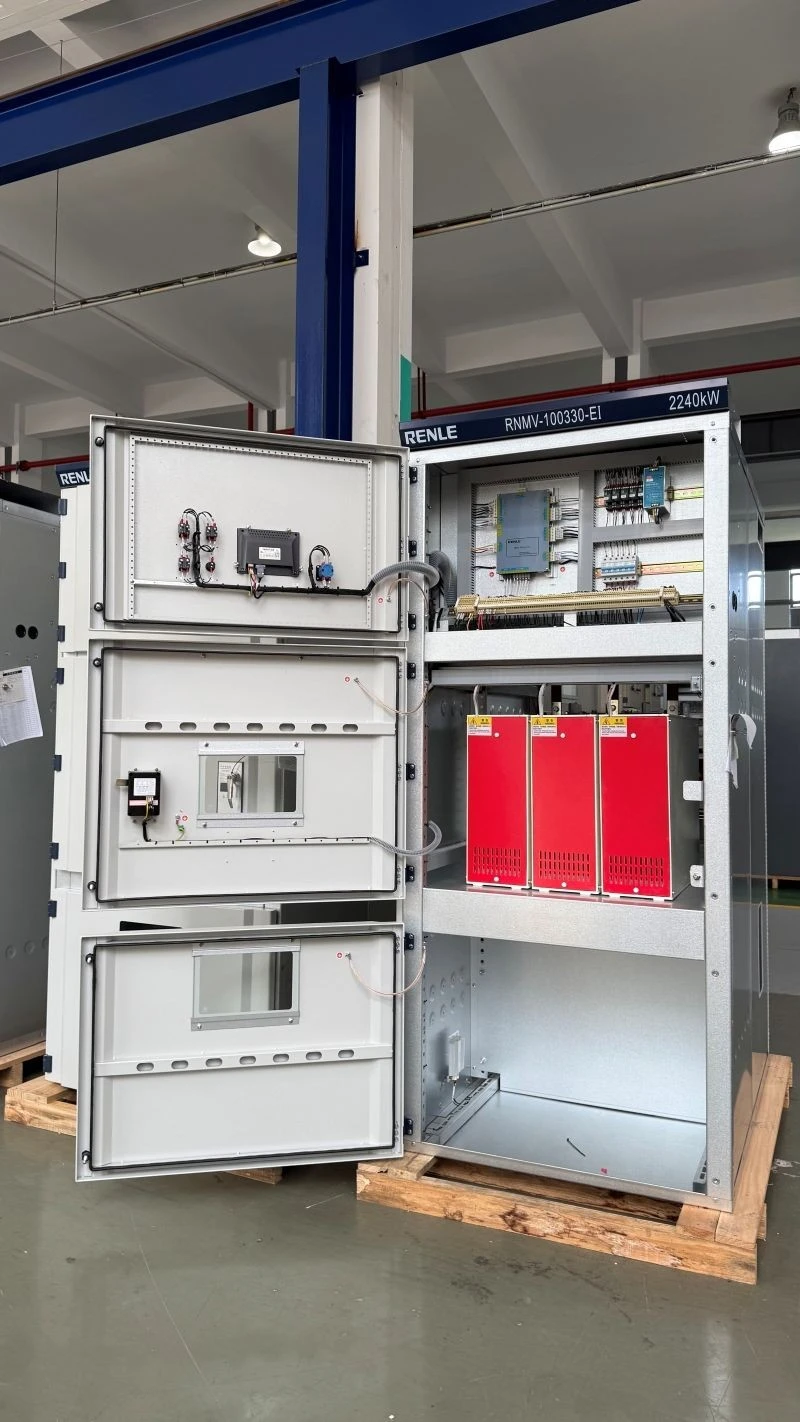

Product Overview
Nrog rau kev txhawb nqa IoT thiab 5G, Renle qhov tshiab tshaj plaws ntse muag pib suav nrog tag nrho cov nruab nrab hluav taws xob hluav taws xob hluav taws xob modules siv optical fiber ntau thev naus laus zis. Lawv tuaj txheem nrog Ethernet industrial thiab ntau yam kev sib txuas lus interfaces. Cov yam ntxwv no ua rau muaj kev txheeb xyuas cov ntaub ntawv nyob deb, hloov kho software, kev debugging, thiab virtual oscilloscope functions-tag nrho ntawm kev lag luam Ethernet, leveraging Renle xyoo ntawm kev txawj ntse.
nruab nrab voltage khoom lub xeev pib Cov yam ntxwv tseem ceeb
Fiber multiplexing tshuab
Tag nrho digitalization ntawm siab -voltage fais fab modules
Ntau yam kev sib txuas lus interfaces
Kev txheeb xyuas cov ntaub ntawv nyob deb
Industrial Ethernet kev sib txuas lus
Tej thaj chaw deb software upgrades
Technical nta
- Siv cov series- txuas thyristor valve pawg thiab dual fais fab mov triggering tshuab.
- Ua haujlwm fiber ntau optic multiplexing rau ob qho tib si tsav tswj thiab nrhiav tau cov ntaub ntawv.
- Features HMI rau tiag tiag - lub sijhawm saib xyuas, tso saib, thiab kev hloov pauv ntawm cov kab ke thiab cov xwm txheej.
- Integrate OBD thiab software-raws li kev tiv thaiv dual overvoltage.
- Ua txwv cov ntaub ntawv txheeb cais tom qab txhua qhov pib los ntsuas qhov system qhov xwm txheej.
- Koom nrog cov theem - kaw lub voj nrog peb -theem conduction them nyiaj tswj.
- Cov kev tiv thaiv muaj xws li: nyob rau hauv -voltage, theem poob, overcurrent, overheating, thyristor overvoltage, trigger tsis ua hauj lwm, txawv voltage sib faib, txawv txav RC tam sim no, ntaus ntawv tsis ua hauj lwm, thiab kev sib txuas lus / fais fab teeb meem -startup raug thaiv raws li tej yam txawv txav.
- Txhawb tej thaj chaw deb software hloov tshiab, debugging, waveform xyuas, thiab txhaum kev soj ntsuam ntawm Internet.
- Txuas rau huab servers ntawm kev lag luam Ethernet thiab 5G, ua kom muaj cov ntaub ntawv loj analytics, AI algorithms, huab-raws li kev kuaj lub cev muaj zog, kev twv ua ntej, thiab kev tswj kom zoo.
Qauv piav qhia
Soft Start Function
Muaj zog load adaptability, nrog ob hom pib tswj:
- Hom tam sim no tsis tu ncua: Lub cev muaj zog tam sim no thaum lub sijhawm pib yog txwv rau ntau yam ntawm 100-500%.
- Voltage Ramp Hom: Lub kaum sab xis tswj maj mam nce qhov tso zis hluav taws xob mus rau qhov ntsuas hluav taws xob.
Free Stop lossis Soft Stop yog xaiv tau: Qhov no yog qhov tsim nyog rau ntau lub sijhawm nres, ua tau raws li cov kev xav tau tshwj xeeb, xws li tshem tawm cov dej rauj hauv cov twj tso kua mis.
Qhov zoo
5G Industrial Ethernet Kev Sib Txuas Lus
Leveraging industrial Ethernet thiab huab platforms, lub tshuab no ua rau muaj kev txhawb nqa rau tej thaj chaw deb rau cov khoom siv teb -los ntawm kev nyeem cov ntaub ntawv thiab waveform zaub mus rau kev kuaj mob thiab kev hloov kho software.
Multi-Txoj kev sib txuas lus txhawb nqa
Qhov nruab nrab voltage khoom lub xeev pib txhawb Modbus RTU, Modbus TCP, thiab PROFIBUS DP, nrog tshwj xeeb interfaces rau parameter nkag thiab saib xyuas cov ntaub ntawv. Nws kuj tseem ua kom yooj yim rau kev txheeb xyuas qhov chaw taws teeb waveform thiab kuaj cov ntaub ntawv ntawm software, nrog rau FTP/TFTP-raws li downloads thiab hloov tshiab.
Thawj Tswj Hwm Plan
- Tam sim no transformer: Siv rau tam sim no ntsuas thiab tswj.
- Voltage sensor: Siv rau kev ntsuas qhov ntsuas hluav taws xob, ntsuas theem ua ntu zus, ntsuas ntsuas ntsuas, thiab tswj hluav taws xob.
- Thyristor series valve pawg: suav nrog thyristors, tsav tsheb, kev tiv thaiv, kev tshawb nrhiav, kev sib faib hluav taws xob, thiab cua sov dissipation, thiab lwm yam.
- Bypass contactor: Siv los hloov lub ntsiab Circuit Court rau lub zog zaus tom qab pib ua tiav muag.
- Zero-cequence transformer: Optional.
- Squirrel tawb lub cev muaj zog: Muab los ntawm cov neeg siv khoom.
Nco tseg: Yog tias yuav tsum muaj cov khoom siv hluav taws xob reactive, nws yuav tsum tsuas yog txuas nrog lub hwj huam mov kawg ntawm lub tshuab hluav taws xob thiab tsis tuaj yeem nruab rau ntawm qhov kawg tso zis.
General Application Schematic Diagram
- Cov khoom hluav taws xob nkag: muab los ntawm tus neeg siv.
- Voltage sensor: Siv rau qhov ntsuas qhov ntsuas hluav taws xob, ntsuas theem ua ntu zus, thiab kev ua piv txwv synchronous.
- Tam sim no sensor: Siv rau kev tshawb nrhiav tam sim no.
- Thyristor valve pawg: nruj me ntsis soj ntsuam los tiv thaiv- cov hlua thyristor sib npaug.
- Controller: Lub hauv paus ntawm mos- pib tswj.
- Bypass contactor: Siv los hloov lub cev muaj zog rau lub zog zaus tom qab pib.
- Zero-cequence transformer: Optional.
- Squirrel-cage motor: Muab los ntawm tus neeg siv.
Technical Parameters
|
Cov ntaub ntawv npe |
Ua haujlwm ntau |
|
Ntau zaus |
50Hz / 60Hz ± 2Hz (xaiv raws li tus neeg siv daim phiaj) |
|
Muaj peev xwm tshaj |
400% tswj tus nqi nominal 60s |
|
500% tswj tus nqi nominal 30s |
|
|
Siv tau lub cev muaj zog |
Peb -theem squirrel- tawb asynchronous thiab synchronous lub cev muaj zog |
|
Kev thov ib puag ncig |
|
|
Kub |
Txee qhov kub thiab txias 0 ° ~ 40 ° C, (Lub rhaub yog xaiv tau rau -20 ° ~ 0 ° C) |
|
Cov av noo |
5% ~ 95% txheeb ze humidity |
|
Qhov siab |
Hauv qab 2000m. Derating yog tsim nyog rau qhov siab tshaj 2000m. |
|
Qhov chaw |
Nyob sab hauv tsev, tsis muaj cov pa tawg lossis corrosive, nrog cov plua plav tsawg |
|
Txias |
Ntuj cua txias |
|
Cov yam ntxwv zoo |
|
|
Kev tiv thaiv qib |
IP4X |
|
Kev ua haujlwm lub zog |
2kVA AC220V muab los ntawm tus neeg siv khoom (tuaj yeem teev tseg). |
|
Main Circuit Court |
Tus naj npawb ntawm thyristors yog txiav txim los ntawm tus qauv. |
|
Kev sib txuas lus raws tu qauv |
Integrated Modbus RTU, Modbus TCP, CAN thiab PROFIBUS DP kev sib txuas lus raws tu qauv, nruab nrog interface. |
|
Kev sib txuas lus interface |
RJ 45 |
|
Kev ua haujlwm interface |
7-inch kov npo (HMI) uas saib xyuas cov xwm txheej hauv lub sijhawm tiag tiag. Siv rau kev teeb tsa thiab hloov cov kev txwv. |
|
Cov ntaub ntawv xwm txheej |
Nws tuaj yeem sau cov xwm txheej tsis tu ncua thiab keeb kwm nkhaus nrog lub sijhawm thiab hnub tim thwj hauv 10 hnub. |
|
Kev soj ntsuam kev ua haujlwm |
Current, voltage, power factor, module temperature, RC average and peak voltage, RC current, etc. |
|
Input thiab output xaiv |
10 channels ntawm 24VDC programmable inputs, 2 raws ntawm 16A thiab 4 raws ntawm 5A programmable outputs, 1 analog programmable tso zis (4 ~ 20mA). |
|
Kev tswj cov neeg siv |
Ntau - qib siv tus password tiv thaiv (tuaj yeem teev tau). |
|
Interface lus |
Suav, Askiv, Lavxias teb sab (tuaj yeem teev tau) |
|
Thyristor |
Thyristor valve pawg hauv series |
|
Tsav thiab cov ntaub ntawv |
Dual fais fab mov triggering, optical fiber kev sib txuas lus multiplexing technology; |
|
Txais yuav synchronous theem- xauv voj, peb-theem conduction them algorithm; |
|
|
Nruab nrog OBD thiab software ob chav overvoltage muaj nuj nqi; |
|
|
Tom qab pib ua tiav, pawg valve txwv cov ntaub ntawv raug suav rau kev ntsuas qhov system. |
|
|
Saib xyuas |
HMI qhov rais, siv rau lub sijhawm tiag tiag - saib xyuas cov xwm txheej hauv lub cev, sau cov ntaub ntawv ntawm pawg valve thiab teeb tsa thiab hloov kho cov kev tswj tsis tau. |
|
Kev tiv thaiv |
Nyob rau hauv voltage, overvoltage, theem poob, overheating, txawv voltage sib koom, txawv txav RC tam sim no, thyristor tsis ua hauj lwm, optical fiber kev sib txuas lus cuam tshuam, txawv txav triggering fais fab mov thiab lwm yam. |
|
Huab kev pabcuam |
Tej thaj chaw deb software hloov tshiab, commissioning, cov ntaub ntawv waveform xyuas thiab kev soj ntsuam txhaum yog pom los ntawm InterNet; |
|
Tom qab txuas mus rau huab server los ntawm kev lag luam Ethernet + 5G, tus pib muag muag muab cov ntaub ntawv rau kev txheeb xyuas cov ntaub ntawv loj thiab cuam tshuam nrog AI algorithms; |
|
|
ua kom tag nrho kev siv lub tshuab xam zauv ntawm huab platform kom paub txog kev txheeb xyuas online thiab kuaj xyuas lub cev muaj zog ua haujlwm, thiab paub txog kev ua txhaum ua ntej- ceeb toom thiab kev tswj kom zoo. |
|
|
Txee xim |
Xaiv los ntawm tus neeg siv. |
|
Pib cov ntaub ntawv |
|
|
Pib tam sim no |
Adjustable nyob rau hauv 4 lub sij hawm ntawm qhov ntsuas tam sim no ntawm lub cev muaj zog. |
|
Pib lub sijhawm |
Adjustable nyob rau hauv 10 ~ 60 vib nas this. |
|
Tus naj npawb pib |
6 zaug hauv ib teev ntawm qhov ntsuas kub ntawm 25 degrees. |
|
Pib lub sijhawm |
Tsis pub tsawg tshaj 5 feeb ntawm ob pib. |
|
Cov kev tiv thaiv |
|
|
Transient overcurrent |
Kev tiv thaiv ntau yam 200% ~ 800% |
|
Inverse lub sij hawm overcurrent |
Lub sijhawm tiv thaiv yog 1 feeb rau 1.5 zaug, siv los tiv thaiv lub cev thaum lub sijhawm ua haujlwm bypass. |
|
Incoming kab nyob rau hauv voltage |
Ntau yam: 0% ~ 100% |
|
Hauv av |
Kev tiv thaiv hauv av tau txheeb xyuas los ntawm xoom- ntu ntu tam sim no. |
|
Cov zis theem poob |
Teem lub chaw pib 1.0% ~ 50% raws li qhov tsis muaj los ntawm kev sib piv ntawm peb theem - cov zis tam sim no. |
|
Thyristor tawg |
Teem qhov kev nqis tes ua los ntawm qhov ntsuas los ntawm kev saib xyuas qhov voltage ntawm txhua qib ntawm thyristors. |
|
RC tam sim no |
Saib xyuas RC tam sim no ntawm txhua theem ntawm thyristors thiab tus kheej RC ua haujlwm. Kev sib txawv tam sim no tuaj yeem teeb tsa. |
|
Ua tsis tiav |
Thaum pib, tus naj npawb ntawm qhov ua tsis tau zoo tshaj qhov teeb tsa tus nqi tsis pub dhau 2 vib nas this ntawm lub qhov rai tshawb pom, yog li kev tiv thaiv ua haujlwm. |
|
Pib lub sijhawm |
Lub sij hawm pib tshaj tus nqi teev. |
|
Tig lub zog |
Yog hais tias lub hwj chim ntawm lub triggering board yog qis dua los yog siab tshaj tus nqi tiv thaiv hardware, kev tiv thaiv ntawm triggering board hwj chim ua. |
|
Kub |
SCR kub tshaj qhov kev teeb tsa. |
|
Thyristor overvoltage |
Thaum pib txheej txheem, txhua qib ntawm SCR tau nruab nrog OBD tiv thaiv. Thaum lub sij hawm ib tug pib txheej txheem, tus xov tooj ntawm overvoltage tsis siv neeg triggering mus txog lub teeb parameter, kev tiv thaiv yog ua. |
Daim ntawv thov
- Peb tau cog lus los txhawb kev tsim kho kev lag luam nrog cov khoom zoo siab -.
- RNMV-EI nruab nrab voltage khoom lub xeev pib tau dav siv thoob plaws kev lag luam xws li hluav taws xob fais fab, metallurgy, roj av, petrochemical, mining, cov khoom siv hauv tsev, tshuaj, thiab cov chaw hauv nroog. Nws muab kev cog lus, ruaj khov, thiab txhim khu kev qha muag muag - pib cov kev daws teeb meem rau nruab nrab -voltage motor control.
- Nruab nrog lub cev muaj zog thiab kev tiv thaiv kev tiv thaiv, Renle's soft starters xa cov kev ua tau zoo txawm tias nyob rau hauv cov xwm txheej hnyav. Nrog cov neeg siv nplua nuj interfaces thiab cov qauv tsim qauv, lawv ua tau raws li qhov pib xav tau ntawm cov khoom loj thiab nruab nrab- cov tshuab loj hauv cov ntawv thov kev lag luam niaj hnub.
- Peb nyob ntawm no los muab cov kev daws teeb meem zoo rau koj cov kev xav tau!
 |
Hluav taws xob kev lag luam |
 |
Kev lag luam hlau |
 |
Kev lag luam tshuaj |
 |
Petroleum Kev Lag Luam |
 |
Kev lag luam thee |
 |
Kev txuag dej kev lag luam |
 |
Kev lag luam ntawv |
 |
Machinery manufacturing |
